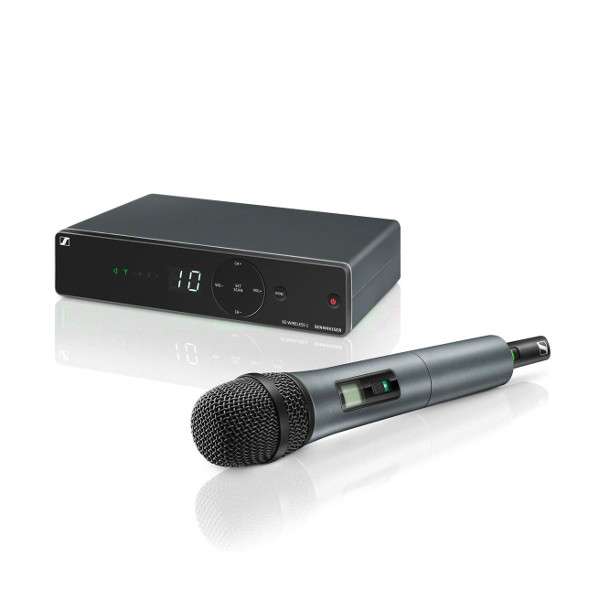

Description Sennheiser XSw 1 825 Radio Microphone Hand Transmitter The Sennheiser XSW 1 825 Vocal Set is an easy-to-use wireless microphone system and is perfect for live performances, presentations and speeches. With a Sennheiser model e825 cardioid ice cream transmitter, the XSW 1-825 system offers natural vocal reproduction with elimination of feedback and ambient noise. Convenient features like one-button scanning and syncing are housed in a simplified receiver with integrated antennas. Excellent live sound with Sennheiser's renowned evolution microphone capsule Diversity receiving antenna switching ensures reliable operation Integrated antennas Automatic frequency management and synchronization via remote channel for easy configuration Selectable UHF frequencies within a large bandwidth Up to 10 channels compatible Provides wireless freedom for live performances Technical Specifications EM XSW Wireless Receiver Band A: 548-572 MHz Receiver with internal switching antennas Sensitivity:-< 3 μV at 52 dB(A)rms S/N AF frequency response: 50Hz – 16kHz Audio Output Connectors: Unbalanced: 1/4'' (6,3mm) Jack Balanced: XLR Maximum AF output: Unbalanced: 6dBu Balanced: 12dBu Audio adjustment range: 45dB, settable in 5dB steps Squelch: Adjustable from 3dB & mu; at 28dB & mu; (Combined with pilot tone) Line/Mic Level: 20dB, switchable Power supply: 12V DC Box Material: Sturdy ABS casing Dimensions: 200 x 42 x 127 mm (W x H x D) Weight: 340 g SKM 825 XSW Handheld Microphone Transmitter Microphone type: Dynamic Pickup Pattern: Cardioid Frequency Response: 80Hz – 16kHz Input Sensitivity: 1.5mV/Pa Adjustment sensitivity range: 0dB to – 30dB, settable in 10 dB steps RF output power: 10mW Power supply: 2 AA batteries, 1.5 V Operating time: About 10 hours Box Material: Sturdy ABS casing Dimensions: 260 50 mm x Weight: 245 g
